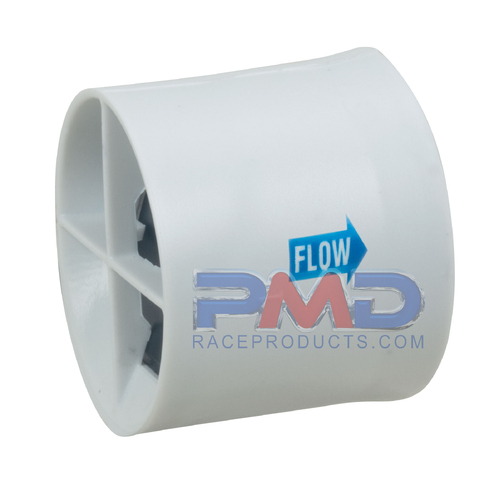

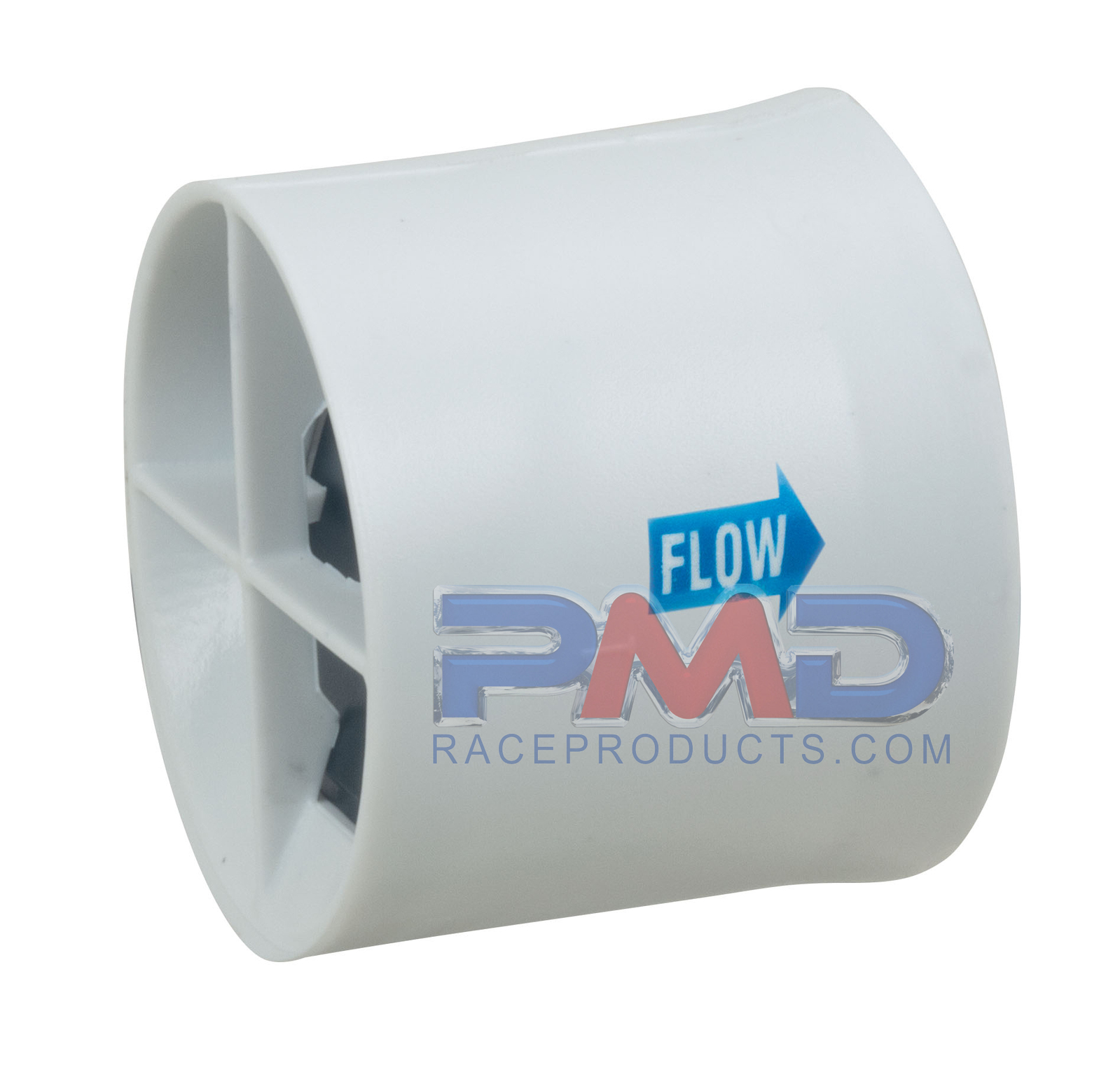

INLINE Fuel Filler with Flapper valve

Fuel Fill In-Hose Flapper Inlet Check Valve - 1-1/2"

• Prevents Fuel Backflow in Filler Necks of tanks
• Helps reduce spit-back and well-back of fuel after filling
• Normally closed valve is opened by the running fuel down the filler neck
• Fits inside of a 1-1/2" ID fuel inlet
• Can be used with metal or plastic tanks
• 1-1/2" OD, 1-1/4" Long
• 18 GPM flow rate

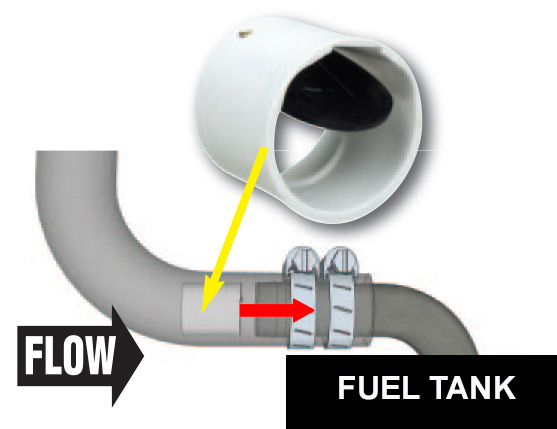

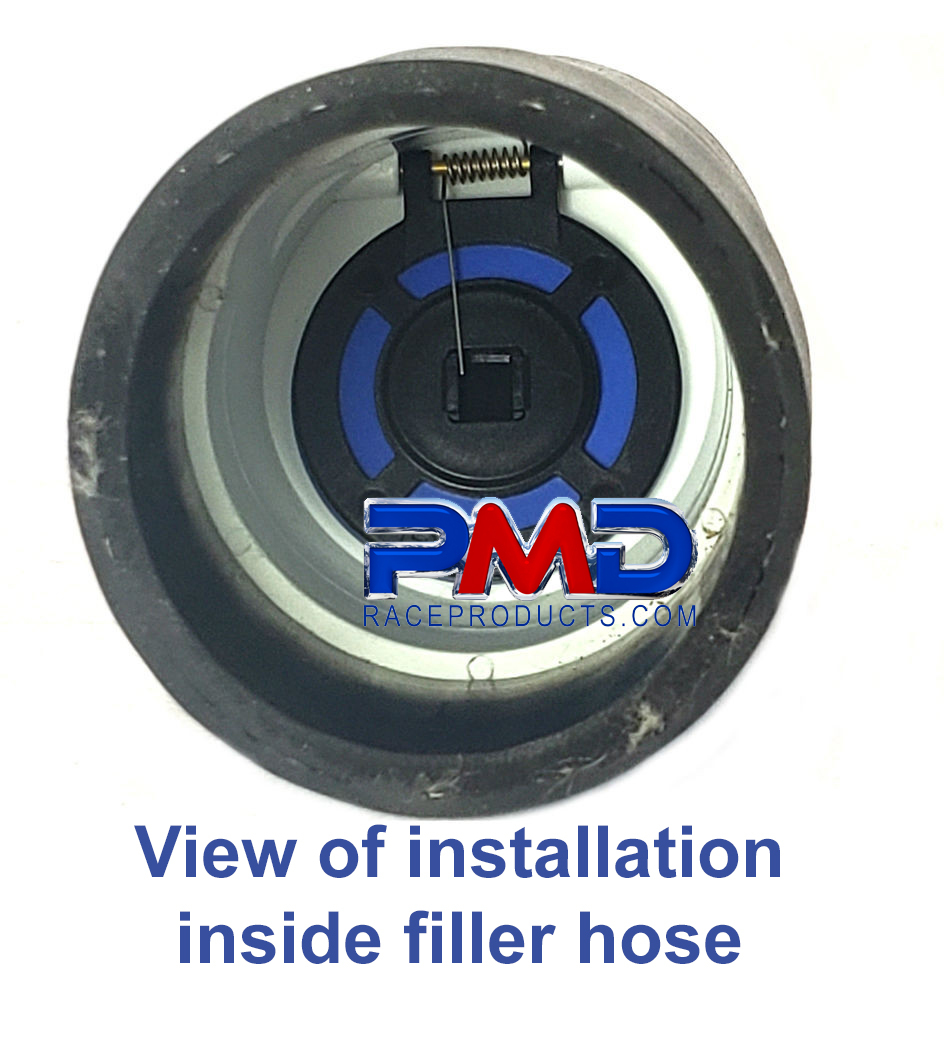

THE CHECK VALVE Must be fitted in accordance to Motorsport Australia requirements, where the valve should be located in the tank filler neck (not as illustrated in the fill tube .. image shown just for reference).
