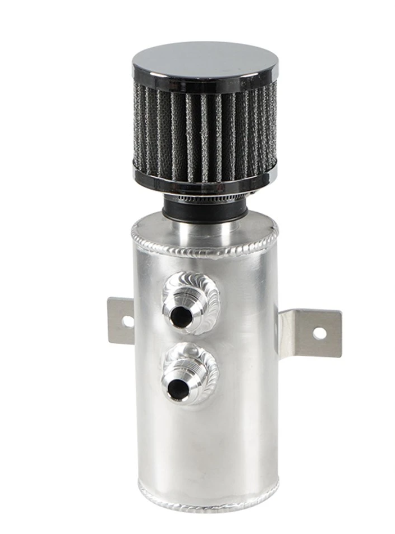

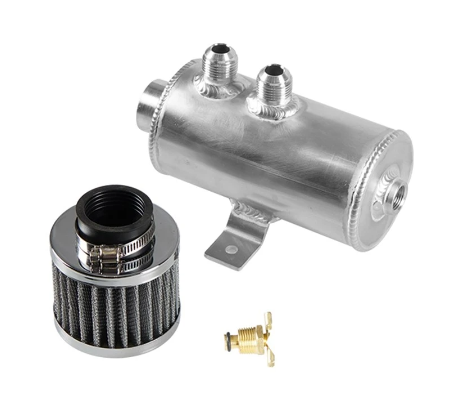

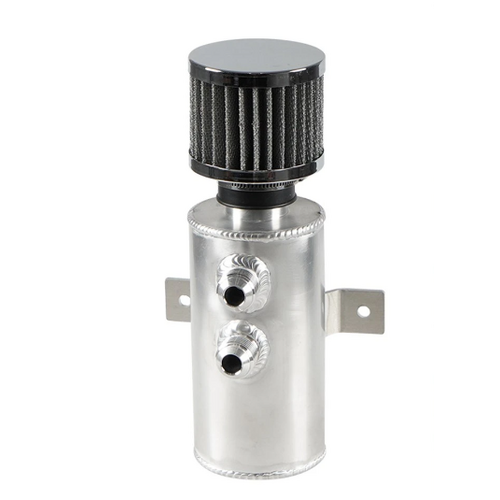

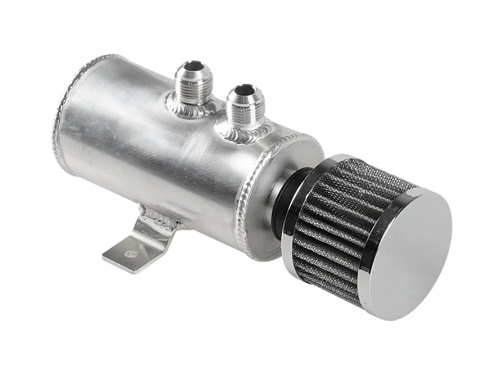

75L Baffled Aluminum Breather Tank / Oil Catch Can Tube 1/2" NPT WITH FILTER
The overall (can with filter) dimensions of the can are the following
- 10.5" total height
- Tube 3" Diameter
- Bracket 5" wide.
The 2 side ports are 1/2" NPT threaded for various types of connections/configurations.
The port at the top of the can is a tube which has internal baffling built into it, this will prevent oil from escaping and remaining inside the catch can.
- Fully Tig Welded
- Bracket is formed with an extrusion for superior strength and durability.
- A 3/8" drain valve is included.
- Filter included.
The idea behind the catch tank is to stop oil going into the inlet side of the engine. On a stock factory car there is usually a engine breather which comes out of the rocker/cam cover and feeds back into the air intake somewhere. This is fine for normal cars but with a high performance car you tend to push the car harder building more crank case pressure and pushing more oil out of the breather, this then goes into the intake system which hinders performance and gums up vital components.
With a catch tank this oil is stored in the tank and doesn't make it back into the engine so you can maintain engine performance.
