Single Helmet blower system NEW for 2024

Smaller, quieter and over 27% more AIR


Calculate Shipping

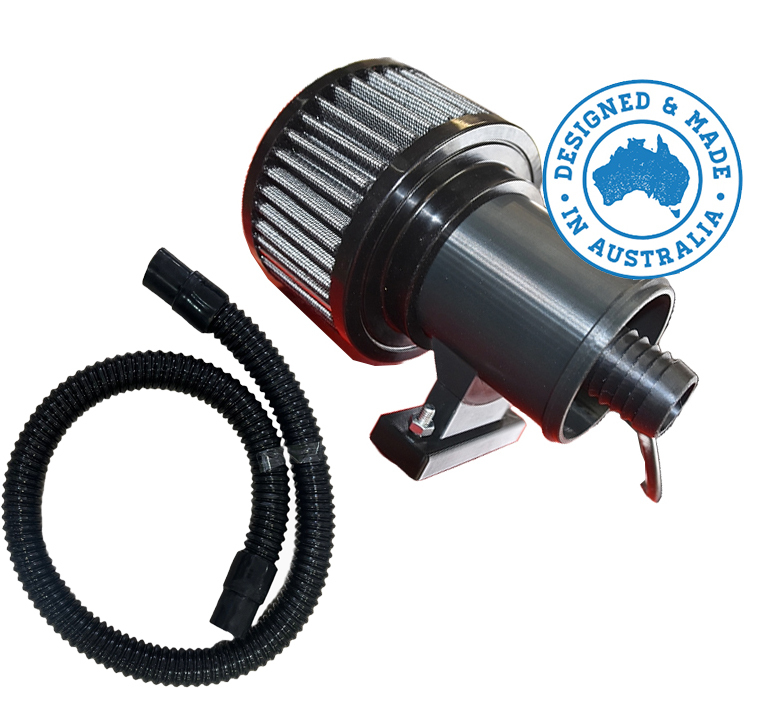

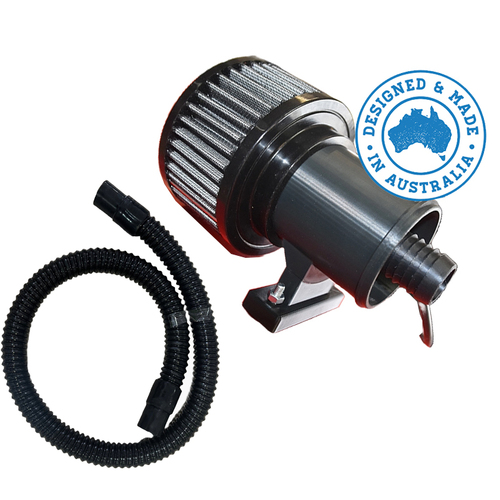

PMD Race Products are proud to present their latest designed single outlet helmet fresh air system, developed and manufactured in-house in Mt Gambier South Australia

This new helmet blower system provides

  • higher air flow more than 27% increase
  • less noise both inside the helmet and externally
  • ball bearing motor running at 25,000 RPM
  • 12v connection by deutsch connectors
  • digital control over the speed of the systems air flow and no stall with 'optional' speed controller

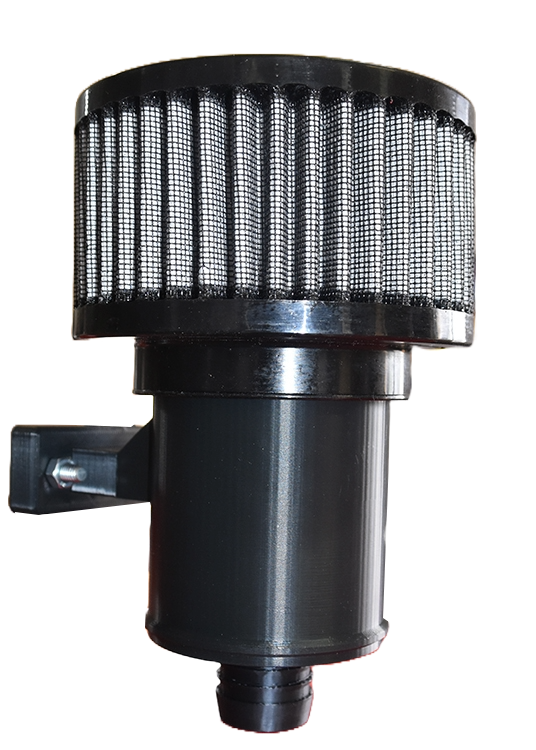

This newly designed single helmet blower features a internal fan housed up inside the filter itself, making it a very compact and quiet fresh air system.

The super high speed ball bearing fan can operate on any angle making it easy to mount in any race cab installation and ensures long life operation

The blower speed can be controlled via Digital PWM with our 'optional' speed controller you can dial up your designed air flow for the race conditions.   With our digital method of speed control we dont just decrease or increase the voltage to change speeds, yes changing voltages to the fan will change the speed but also rob the torque from the motor, which is why many systems that arent set to 100% speed will fail to work/spin from power up (stall).    The digital speed control system maintains the 12v required for the fan to always operate so even if you dial the system down say to 20% speed, the fan will start each and every time power is applied and no stalling.   Being able to control the speed of the system is a benifit as race conditions change from race to race, where you may be tackling a dusty desert race or a tighter and windy short course, simply dial the speed up or down to suit your conditions.

The new housing for our helmet blower system is also made inhouse with our high quality 3d printing machines using Acrylonitrile styrene acrylate (ASA).

ASA offers extraordinary UV, oxidation, and aging resistance and therefore providing effective protection against breakage and color and strength degradation when used outdoors for long-term purposes which is why we choose to use the best product for the testing racing conditions.

Mounting bracket is included with the system which make intallation a breeze. We also have our new optional REMOTE FILTER system when added will allow you to position the blower system anywhere practical for the driver and co-driver whilst feeding air from a remote location with the 'optional' remote filter system.

The single outlet blower system comes with one of our new PMD 4ft helmet hoses which are the strongest yet super slinky/flexible hoses we've seen.





Brand PMD Race Products
Shipping Weight 2.0000kg
Shipping Width 0.500m
Shipping Height 0.100m
Shipping Length 0.420m
Shipping Cubic 0.021000000m3
